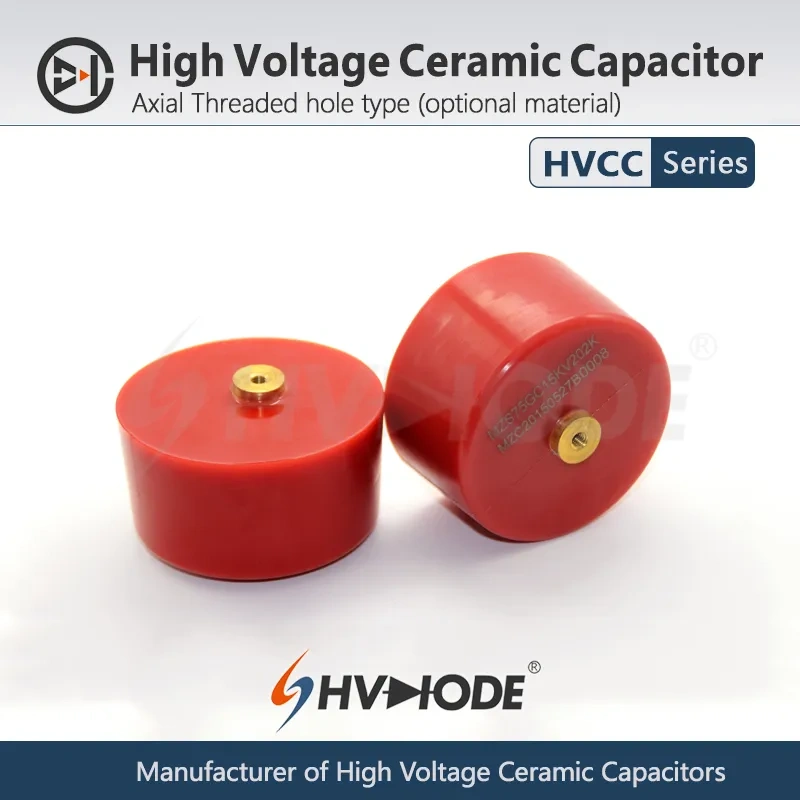

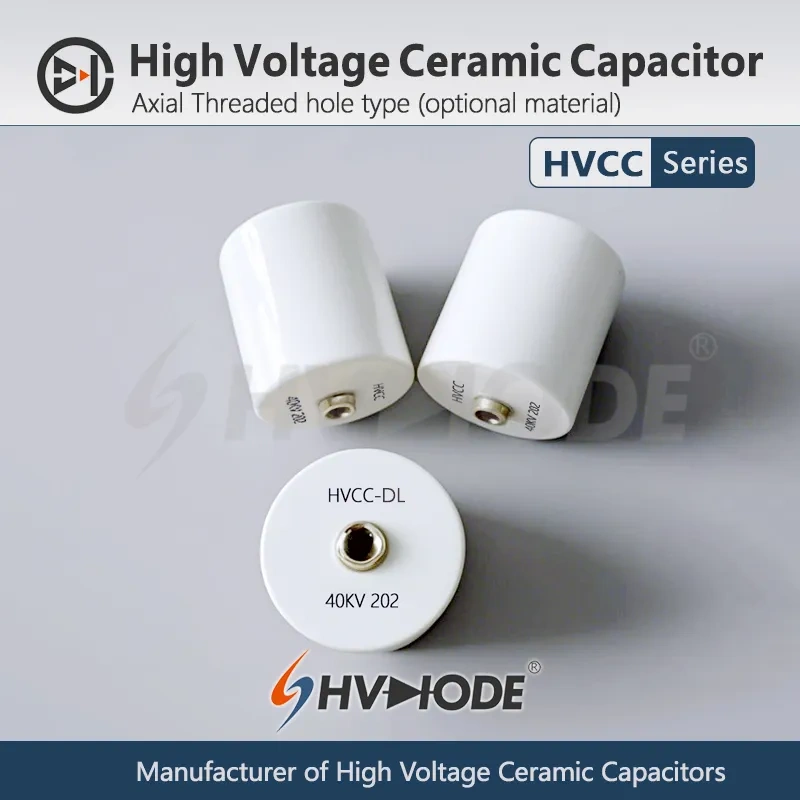

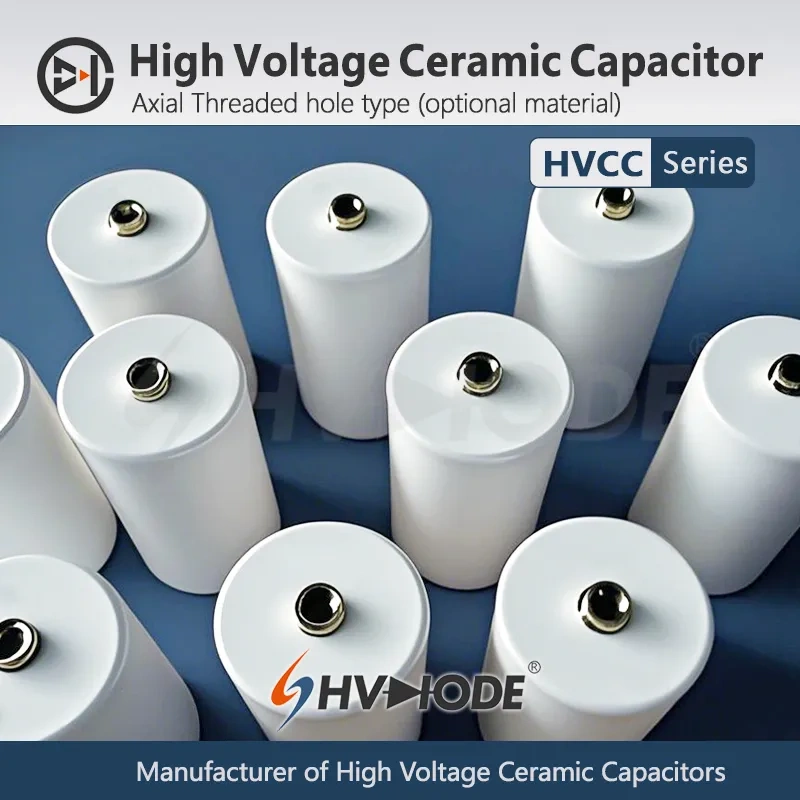

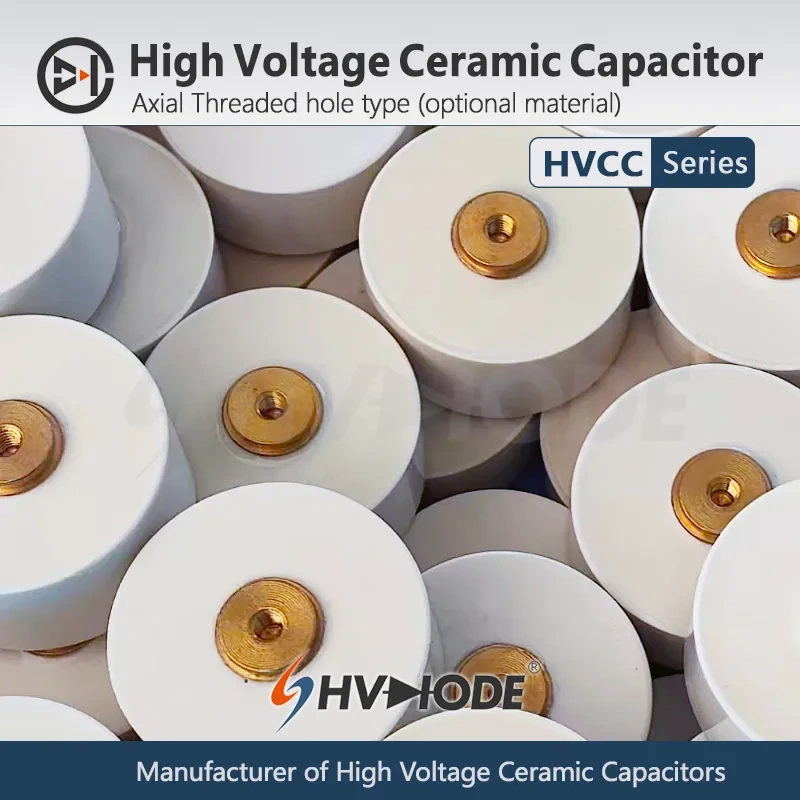

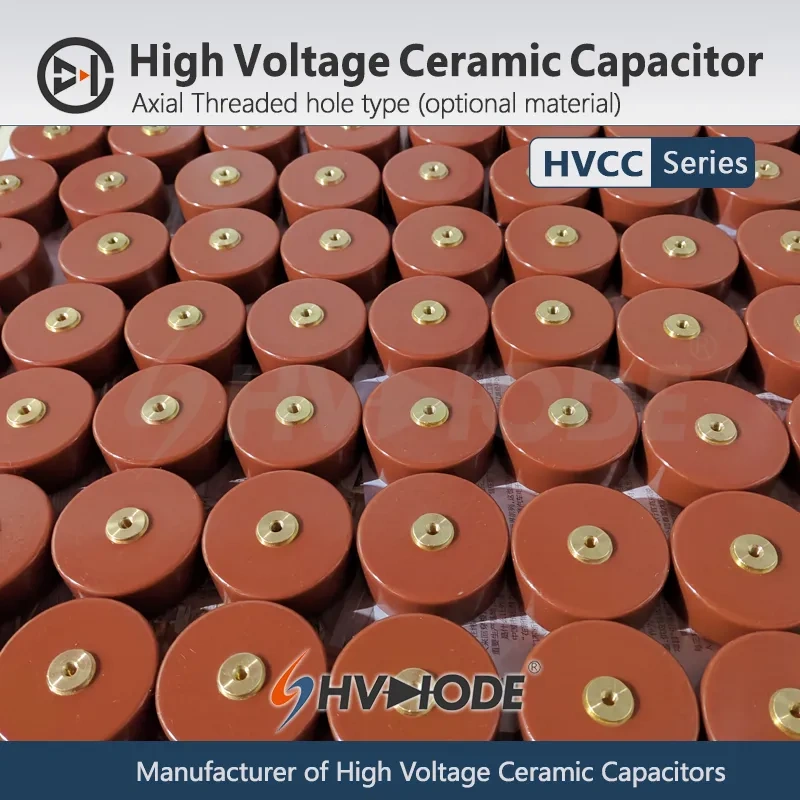

HVCC Series High Voltage Ceramic Capacitors Commonly Used Type| Type | CAP (pF) | Vmax-DC (KV) | Diameter (inch/mm) | Height (inch/mm) | Threaded hole (inch/mm) | |
|---|---|---|---|---|---|---|
| 30KV Level | ||||||
| HVCC30K201 | 200 | 30 | 1.2598 / 32 | 0.9843 / 25 | 0.1575 / 4 | |
| HVCC30K501 | 500 | 30 | 1.2598 / 32 | 0.9843 / 25 | 0.1575 / 4 | |
| HVCC30K102 | 1000 | 30 | 1.3780 / 35 | 0.9843 / 25 | 0.1969 / 5 | |
| HVCC30K202 | 2000 | 30 | 1.5748 / 40 | 0.9843 / 25 | 0.1969 / 5 | |
| HVCC30K302 | 3000 | 30 | 1.5748 / 40 | 0.9843 / 25 | 0.1969 / 5 | |
| HVCC30K502 | 5000 | 30 | 1.9685 / 50 | 0.9843 / 25 | 0.1969 / 5 | |
| HVCC30K103 | 10000 | 30 | 2.3622 / 60 | 0.9843 / 25 | 0.1969 / 5 | |
| HVCC30K203 | 20000 | 30 | 3.1496 / 80 | 0.9843 / 25 | 0.1969 / 5 | |
| HVCC30K303 | 30000 | 30 | 3.9370 / 100 | 0.9843 / 25 | 0.1969 / 5 | |
| 40KV Level | ||||||
| HVCC40K501 | 500 | 40 | 1.2598 / 32 | 1.1417 / 29 | 0.1969 / 5 | |
| HVCC40K102 | 1000 | 40 | 1.3780 / 35 | 1.1417 / 29 | 0.1969 / 5 | |
| HVCC40K202 | 2000 | 40 | 1.5748 / 40 | 1.1417 / 29 | 0.1969 / 5 | |
| HVCC40K302 | 3000 | 40 | 1.5748 / 40 | 1.1417 / 29 | 0.1969 / 5 | |
| HVCC40K402 | 4000 | 40 | 1.9685 / 50 | 1.1417 / 29 | 0.1969 / 5 | |
| HVCC40K502 | 5000 | 40 | 2.7559 / 70 | 1.1811 / 30 | 0.1969 / 5 | |
| HVCC40K103 | 10000 | 40 | 3.1496 / 80 | 1.1811 / 30 | 0.1969 / 5 | |
| HVCC40K153 | 15000 | 40 | 3.5433 / 90 | 1.1811 / 30 | 0.1969 / 5 | |
| HVCC40K203 | 20000 | 40 | 3.9370 / 100 | 1.2598 / 32 | 0.1969 / 5 | |
| 50KV Level | ||||||
| HVCC50K501 | 500 | 50 | 1.2598 / 32 | 1.2598 / 32 | 0.1575 / 4 | |
| HVCC50K102 | 1000 | 50 | 1.3780 / 35 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K202 | 2000 | 50 | 1.5748 / 40 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K252 | 2500 | 50 | 1.9685 / 50 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K302 | 3000 | 50 | 1.9685 / 50 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K352 | 3500 | 50 | 2.3622 / 60 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K402 | 4000 | 50 | 2.3622 / 60 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K452 | 4500 | 50 | 2.7559 / 70 | 1.2598 / 32 | 0.1969 / 5 | |
| HVCC50K502 | 5000 | 50 | 3.1496 / 80 | 1.4173 / 36 | 0.1969 / 5 | |
| HVCC50K552 | 5500 | 50 | 3.5433 / 90 | 1.4567 / 37 | 0.1969 / 5 | |
| HVCC50K602 | 6000 | 50 | 3.9370 / 100 | 1.4961 / 38 | 0.1969 / 5 | |
|
Other models and parameters are not fully displayed, please contact: sales@hvdiode.com |
||||||
| Type | CAP (pF) | Vmax-DC (KV) | Diameter (inch/mm) | Height (inch/mm) | Threaded hole (inch/mm) | |
|---|---|---|---|---|---|---|
| 60KV Level | ||||||
| HVCC60K102 | 1000 | 60 | 1.5748 / 40 | 1.3780 / 35 | 0.1969 / 5 | |
| HVCC60K202 | 2000 | 60 | 1.7717 / 45 | 1.3780 / 35 | 0.1969 / 5 | |
| HVCC60K252 | 2500 | 60 | 1.9685 / 50 | 1.3780 / 35 | 0.1969 / 5 | |
| HVCC60K302 | 3000 | 60 | 2.3622 / 60 | 1.3780 / 35 | 0.1969 / 5 | |
| HVCC60K402 | 4000 | 60 | 2.3622 / 60 | 1.3780 / 35 | 0.1969 / 5 | |
| HVCC60K502 | 5000 | 60 | 2.7559 / 70 | 1.4173 / 36 | 0.1969 / 5 | |
| HVCC60K103 | 10000 | 60 | 3.1496 / 80 | 1.4961 / 38 | 0.1969 / 5 | |
| HVCC60K203 | 20000 | 60 | 3.5433 / 90 | 1.5354 / 39 | 0.1969 / 5 | |
| 80KV Level | ||||||
| HVCC80K102 | 1000 | 80 | 1.9685 / 50 | 1.5748 / 40 | 0.1969 / 5 | |
| HVCC80K202 | 2000 | 80 | 2.3622 / 60 | 1.5748 / 40 | 0.1969 / 5 | |
| HVCC80K302 | 3000 | 80 | 2.7559 / 70 | 1.6535 / 42 | 0.1969 / 5 | |
| HVCC80K402 | 4000 | 80 | 3.1496 / 80 | 1.6929 / 43 | 0.1969 / 5 | |
| HVCC80K502 | 5000 | 80 | 3.5433 / 90 | 1.7323 / 44 | 0.1969 / 5 | |
| 100KV Level | ||||||
| HVCC100K201 | 200 | 100 | 1.2598 / 32 | 1.9685 / 50 | 0.1969 / 5 | |
| HVCC100K301 | 300 | 100 | 1.5748 / 40 | 1.9685 / 50 | 0.1969 / 5 | |
| HVCC100K501 | 500 | 100 | 1.9685 / 50 | 2.0472 / 52 | 0.1969 / 5 | |
| HVCC100K801 | 800 | 100 | 2.3622 / 60 | 2.1260 / 54 | 0.1969 / 5 | |
| HVCC100K102 | 1000 | 100 | 2.3622 / 60 | 2.1260 / 54 | 0.1969 / 5 | |
| HVCC100K152 | 1500 | 100 | 2.7559 / 70 | 2.1260 / 54 | 0.1969 / 5 | |
| HVCC100K202 | 2000 | 100 | 3.1496 / 80 | 2.1260 / 54 | 0.1969 / 5 | |
|
Other models and parameters are not fully displayed, please contact: sales@hvdiode.com |
||||||
